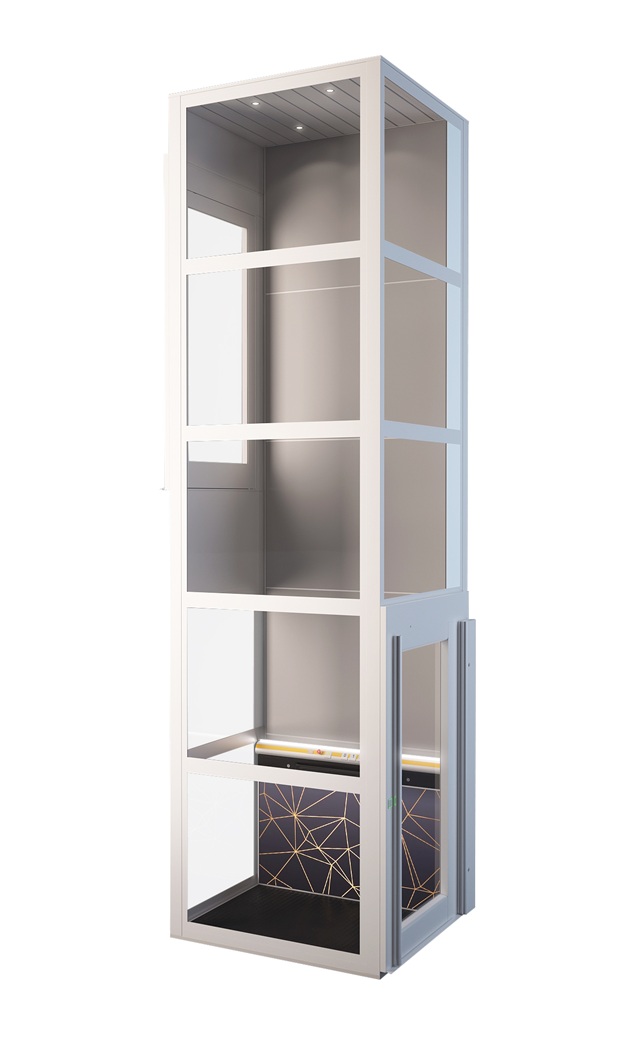

SB200 Enclosed platform lift

  • Spacious Platform Construction;
  • Exceptional Installation Flexibility;
  • Adapted for Visual and Mobility Disabilities.

The SB200 platform lift is a reliable and versatile accessibility solution designed to provide safe and comfortable vertical transportation for wheelchair users and people with reduced mobility. Its enclosed construction combines safety, comfort, and modern design, making it suitable for residential, commercial, and public buildings.

SB200

Platform lift up to 13 Meters, 6 Stops

Engineered to enhance building accessibility, the SB200 platform lift provides smooth and effortless vertical movement between floors. Featuring a fully enclosed structure, this versatile lifting solution combines high-level safety with modern aesthetics, making it an ideal choice for private residences, commercial facilities, and public spaces.

The SB200 is specially designed to improve accessibility for people with reduced mobility. Its spacious platform comfortably accommodates a wheelchair user and an accompanying person, providing a safe and convenient travel experience between floors.

An audible signal and Braille-labelled control buttons enable individuals with visual impairments to operate the lift independently and safely. The intuitive control system is designed to make everyday use simple and accessible for a wide range of users.

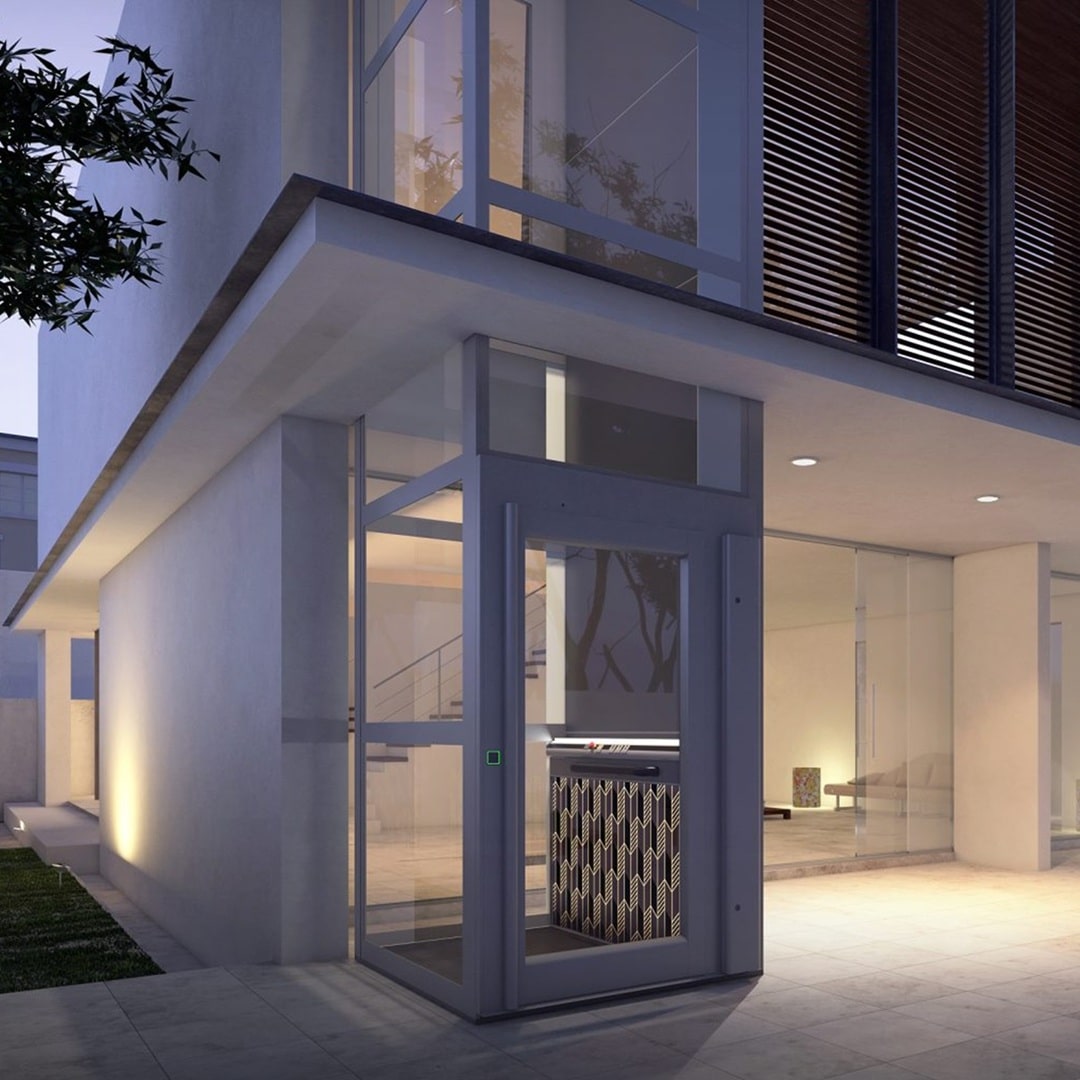

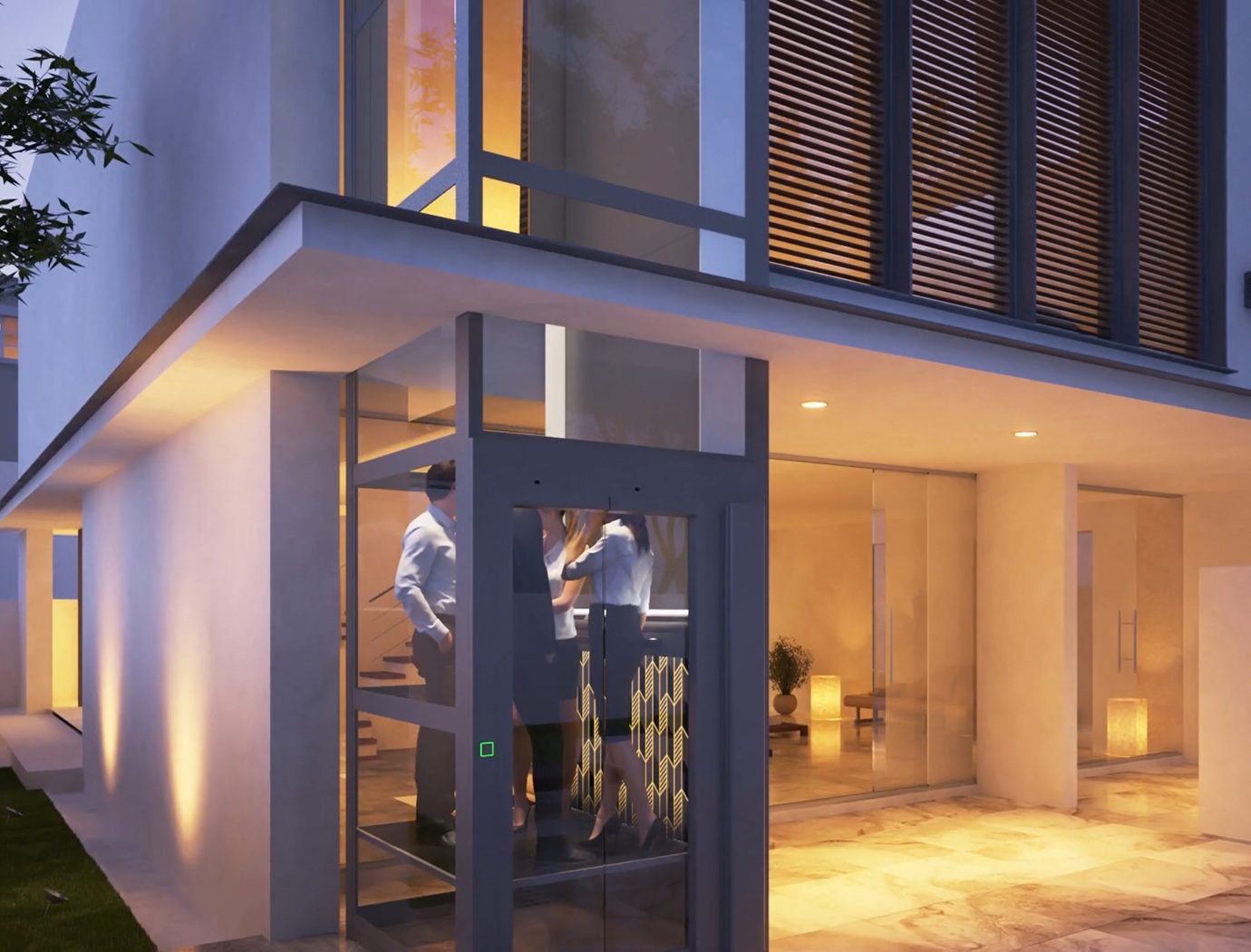

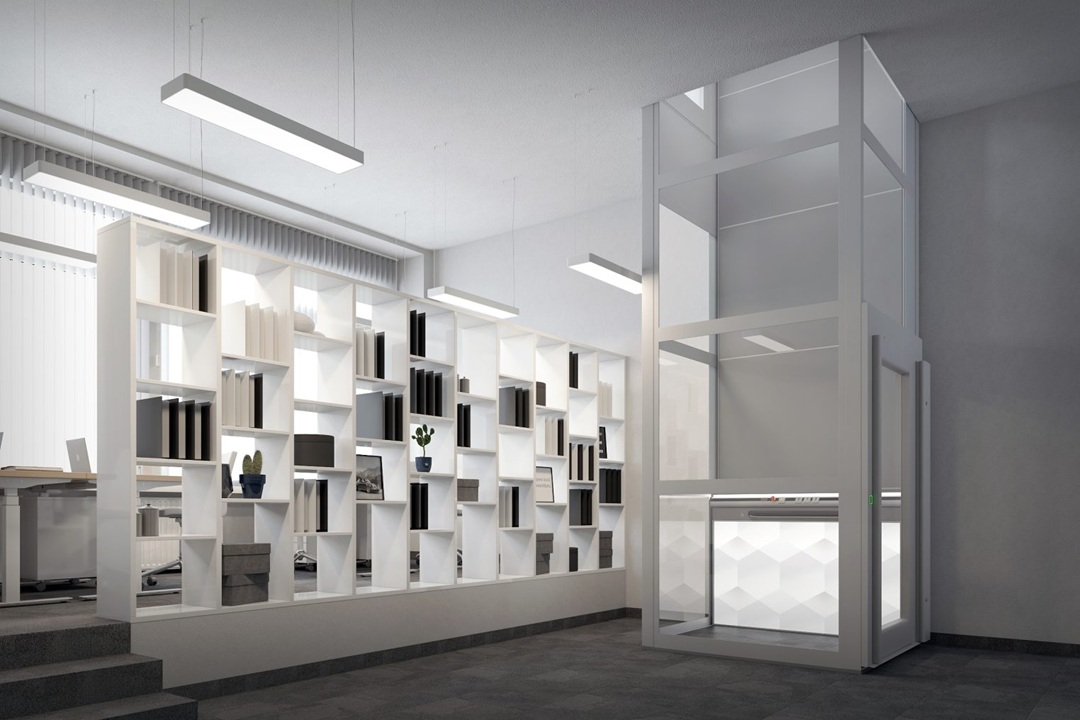

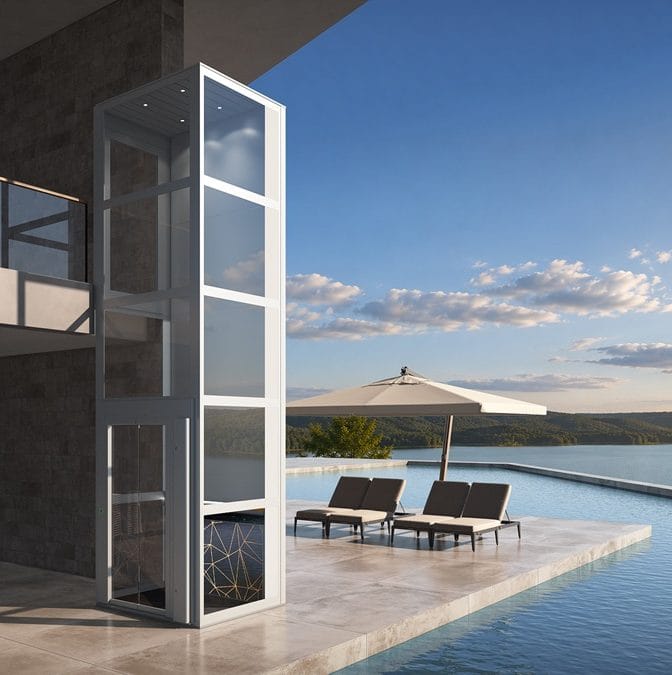

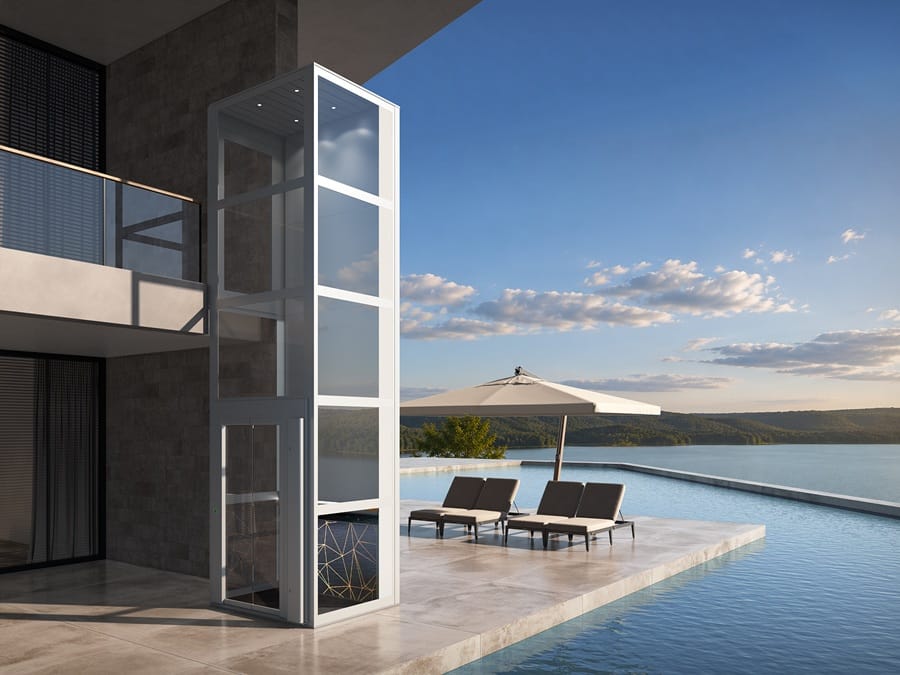

The SB200 combines functionality with cost-efficiency and offers exceptional installation flexibility. It can be installed indoors or outdoors, between staircases, within an existing shaft, or in an open structure, depending on the requirements of the building.

With a travel height of up to 13 meters and up to 6 stops, the SB200 is suitable for low- and mid-rise buildings. Its screw-driven system provides smooth and reliable operation, while the enclosed design offers additional protection and comfort during travel.

Excellence in design

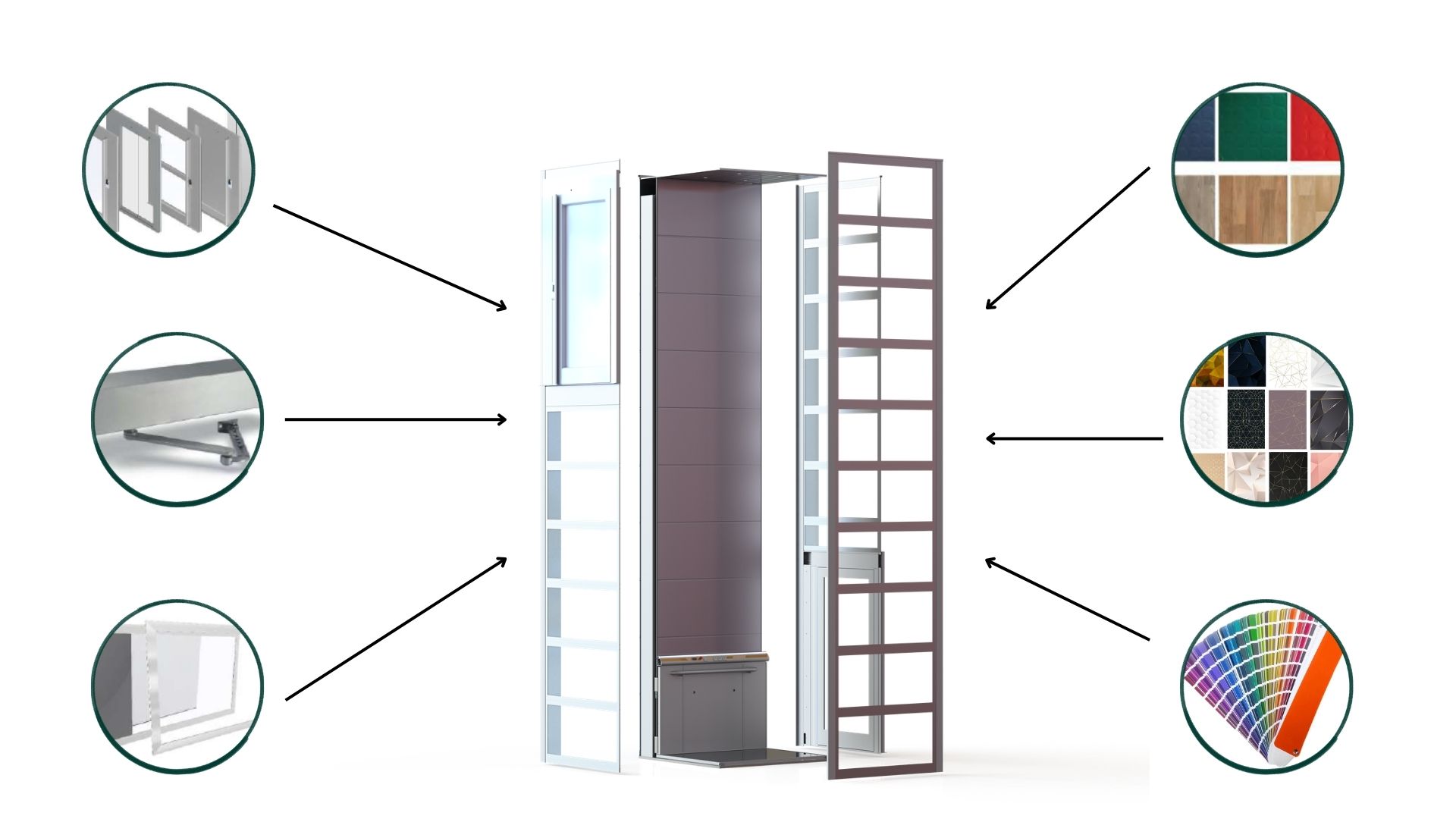

SB200 lift design options

home lift SB200 colors other options

Select a customized elevator solution that perfectly matches your functional needs and complements your interior design.

Lift Design

SB200 platform lift advantages

Spacious Platform Construction

The specially designed platform ensures maximum comfort and safety. It is large enough not only for a wheelchair but also for an accompanying person, making the journey pleasant and stress-free.

Economical and Sustainable Solution

The SB200 model combines high functionality with optimized operating costs. Its energy-efficient technology reduces electricity consumption and contributes to more sustainable building management.

Exceptional Installation Flexibility

This enclosed platform lift can be installed indoors or outdoors, in stairwells, existing shafts, or open structures. It is a highly flexible solution that easily adapts to various types of architecture.

Minimal Maintenance Requirements

The screw-driven technology is known for its durability and reliability. A straightforward installation process and minimal technical maintenance help save you time and long-term costs.

Innovative Safety System

The lift is equipped with advanced safety features that ensure smooth movement and a secure stop in any situation. This guarantees peace of mind for both users and building owners.

Adapted for Visual and Mobility Disabilities

Intuitive controls, Braille lettering, and voice signals make the SB200 one of the best-adapted solutions on the market for removing all architectural barriers.

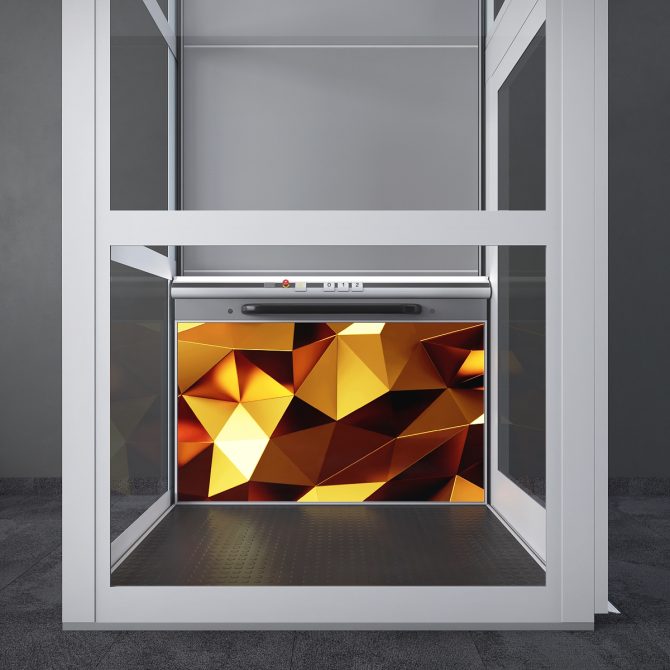

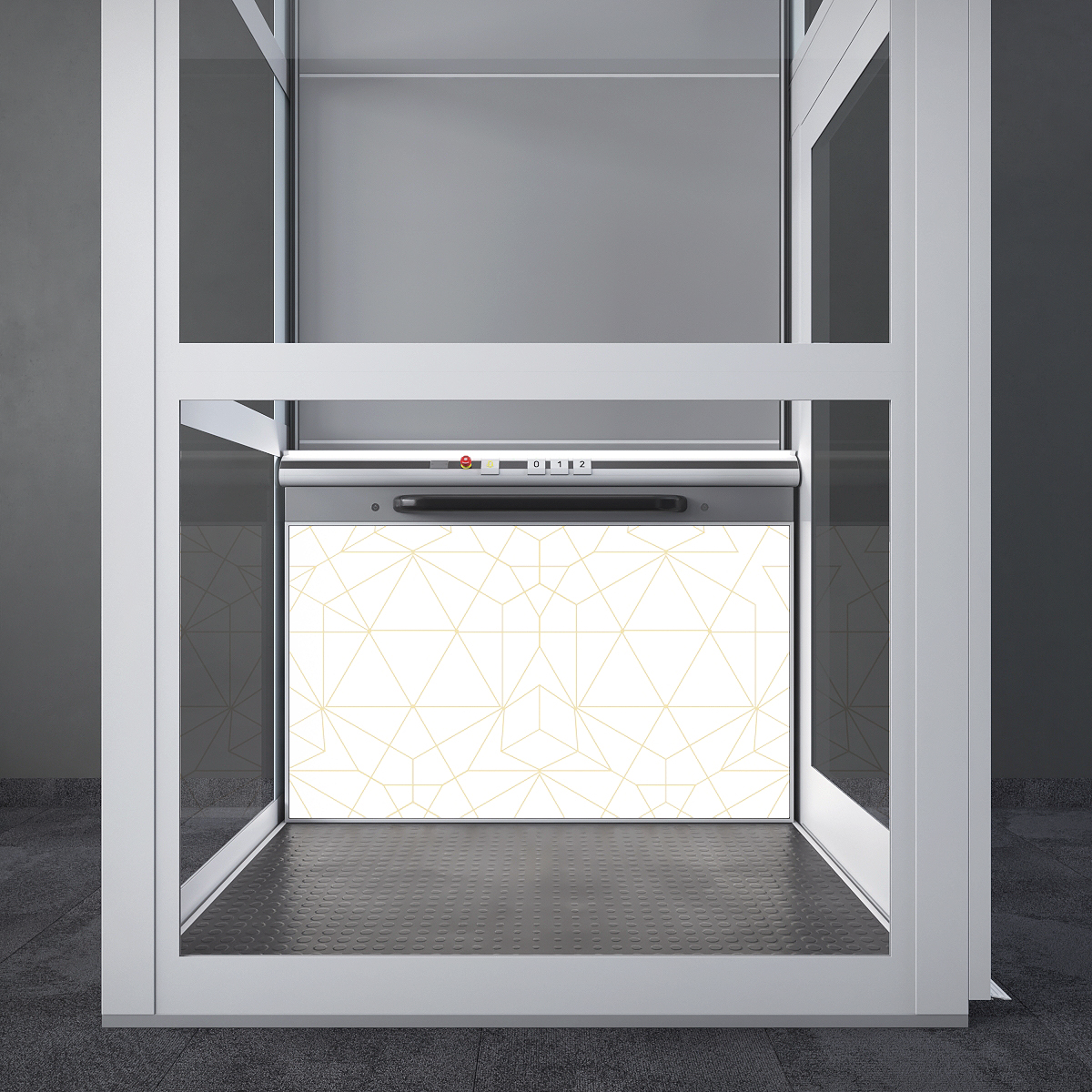

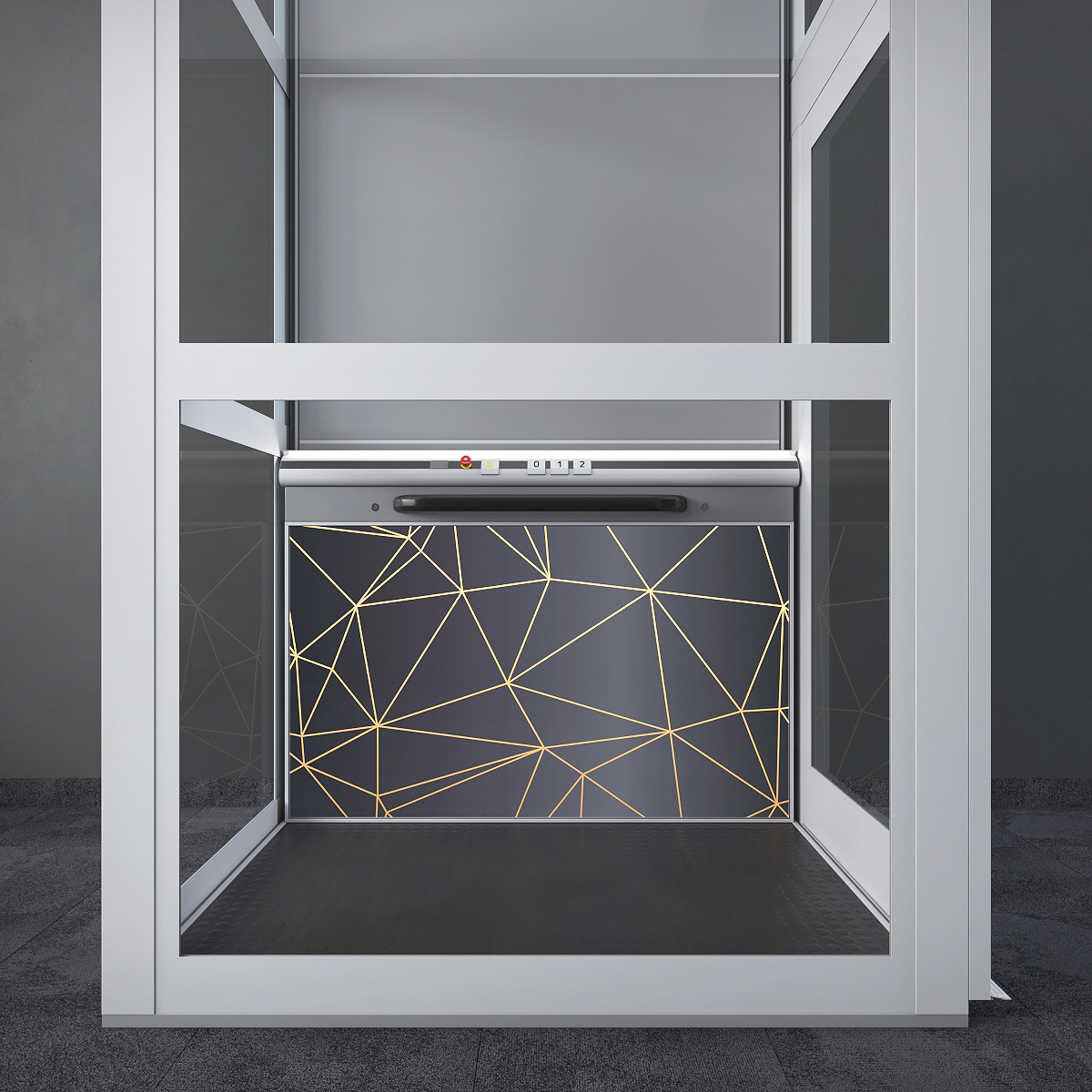

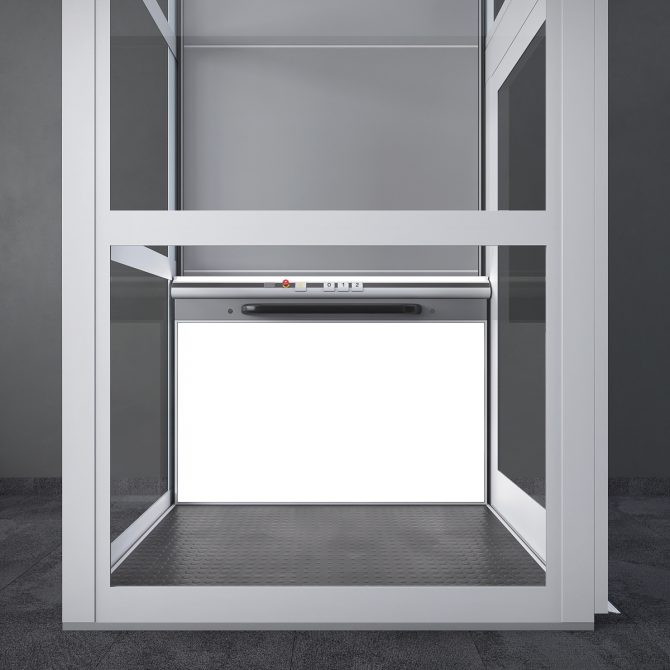

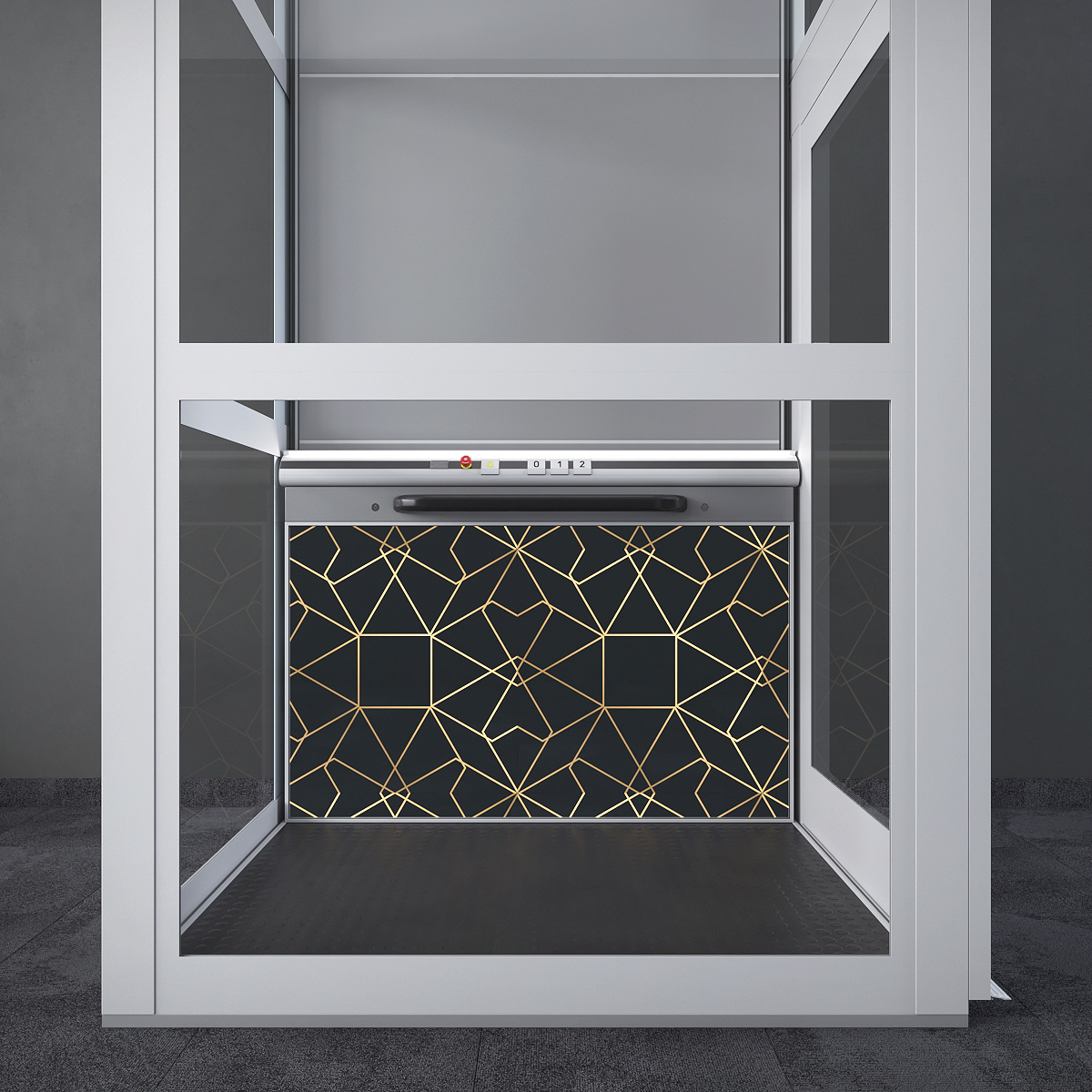

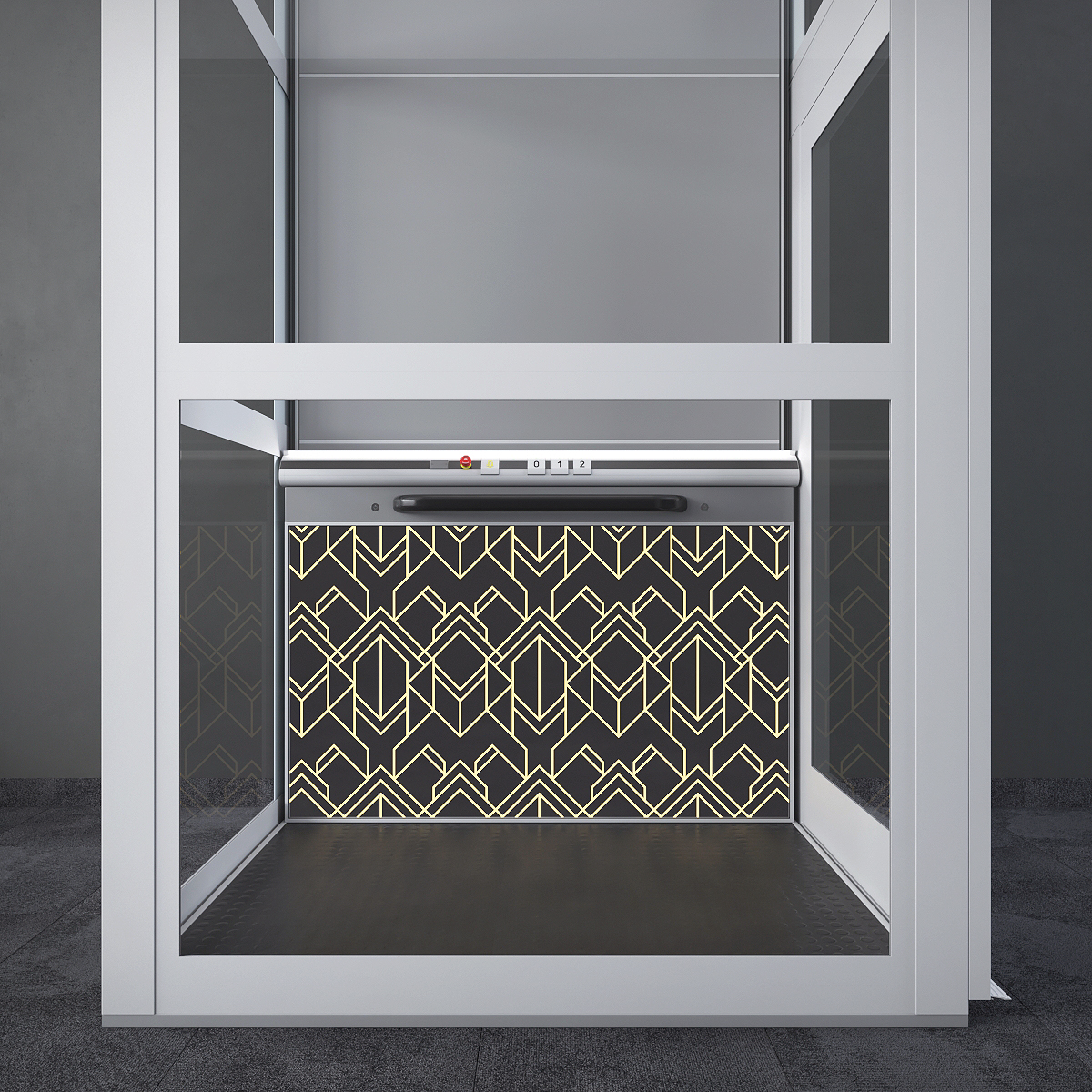

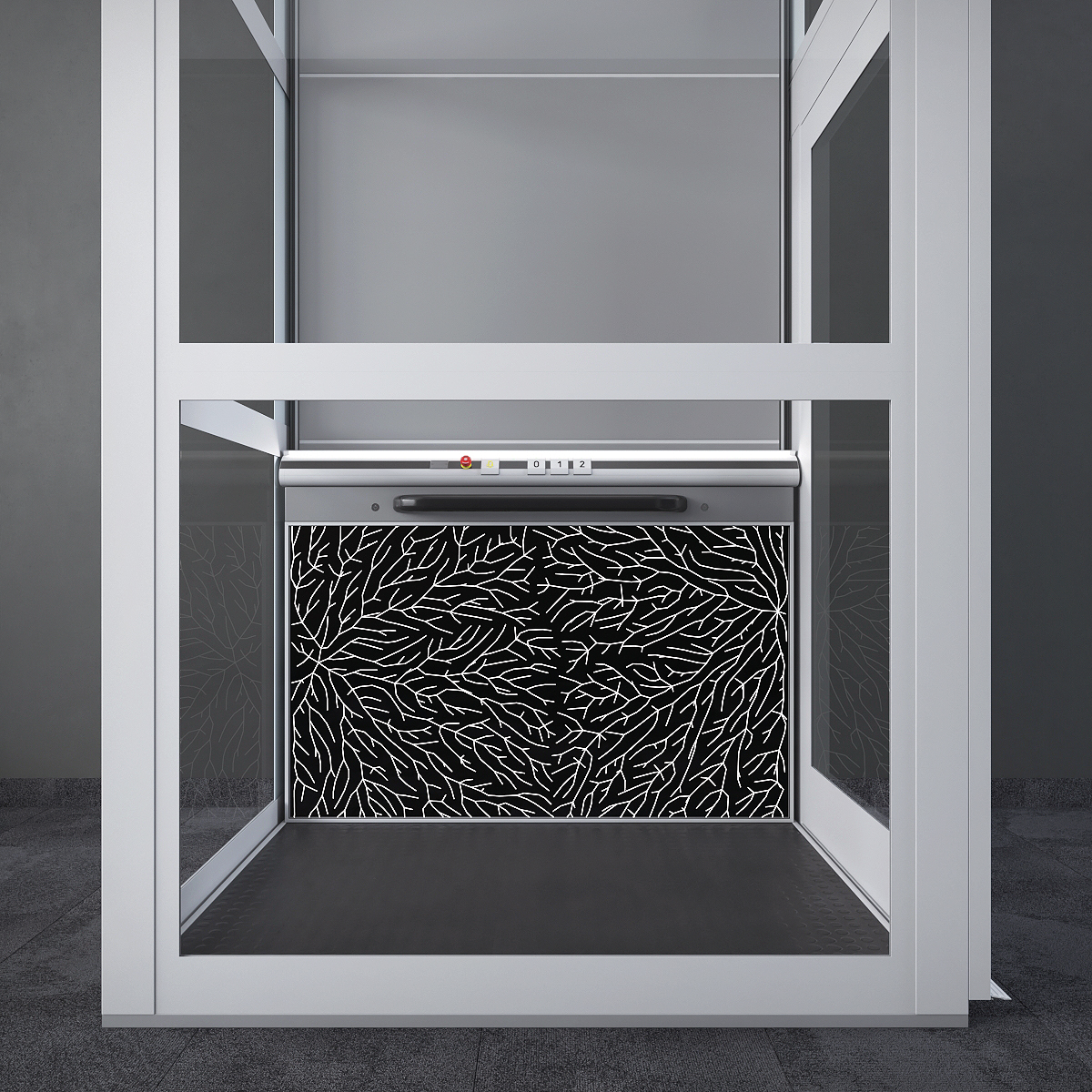

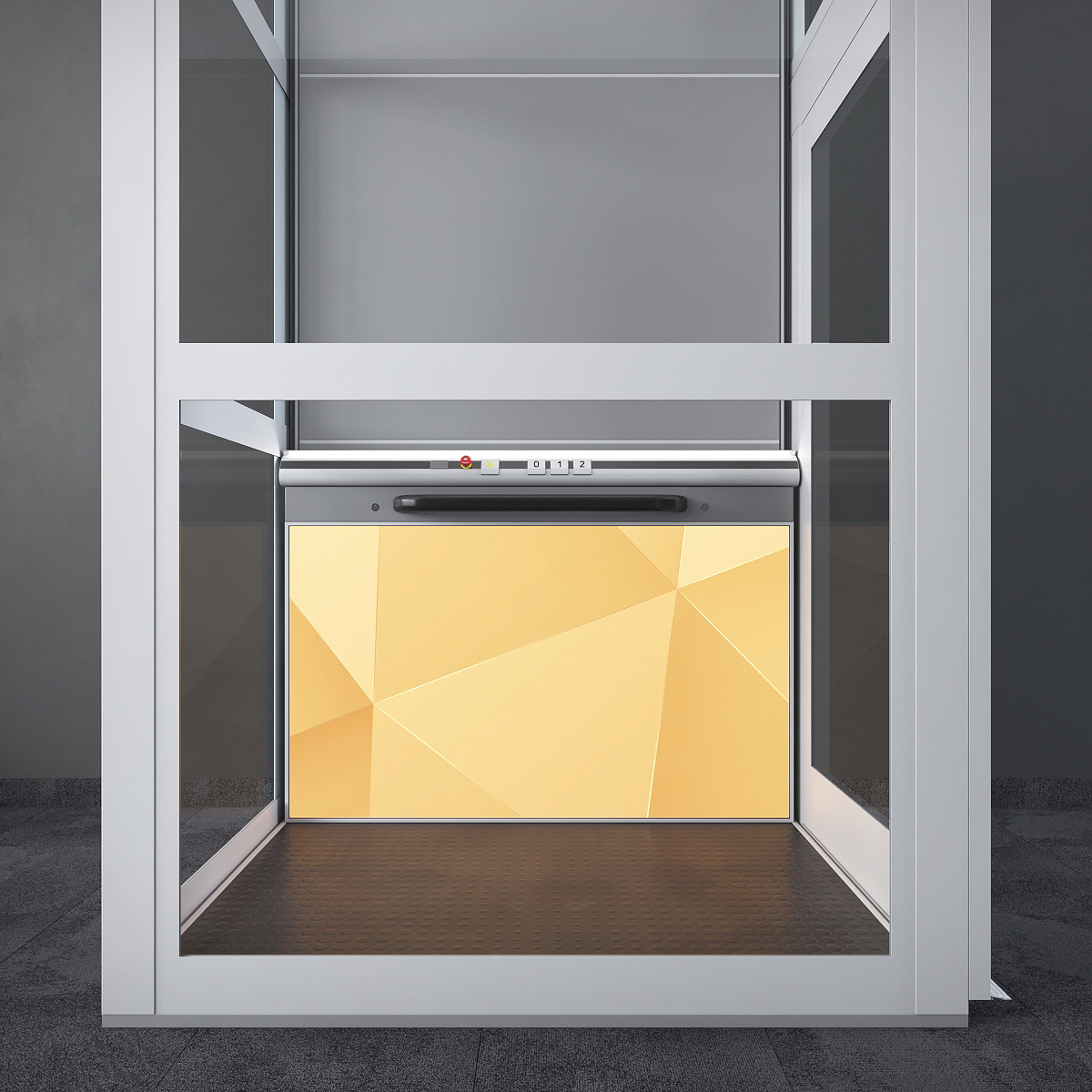

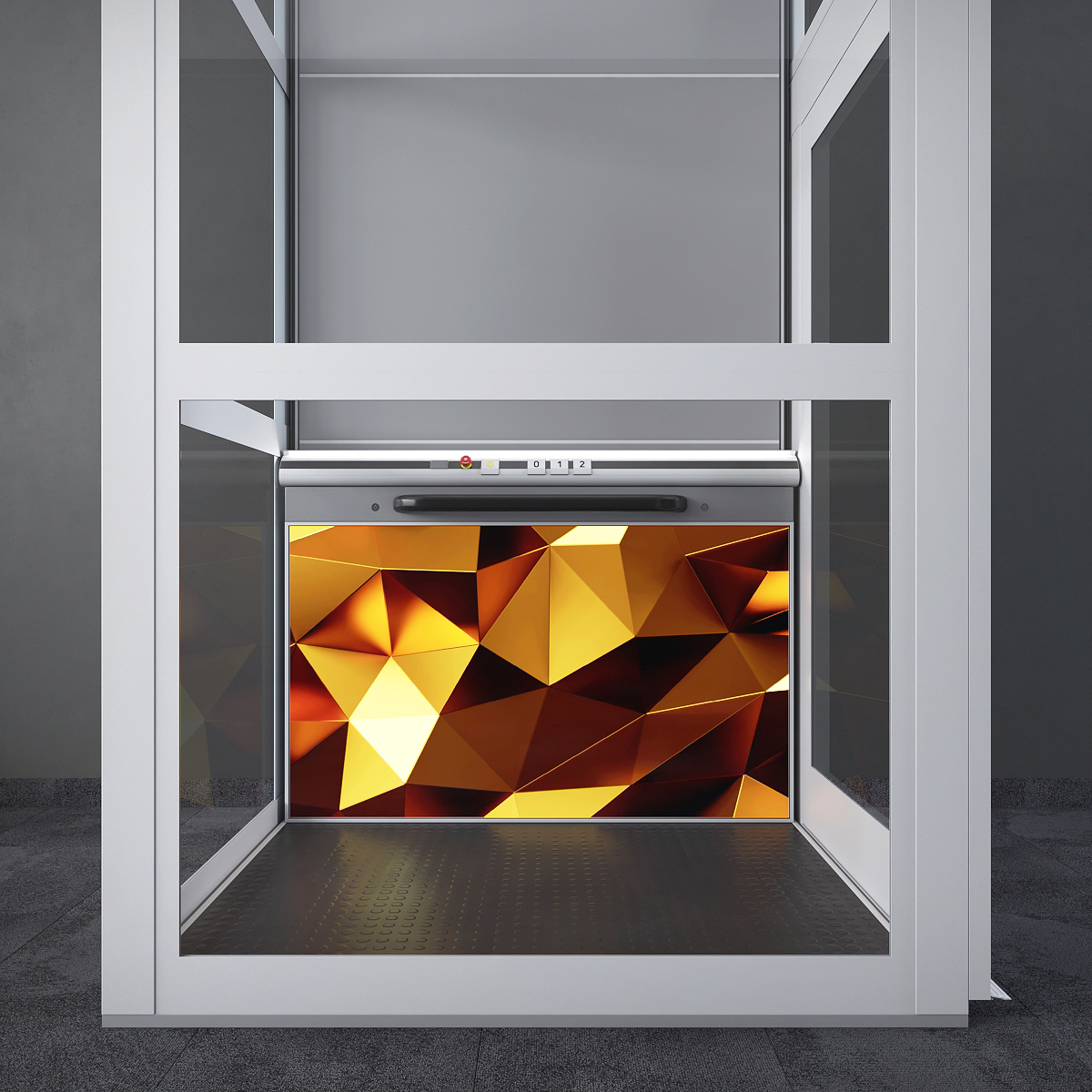

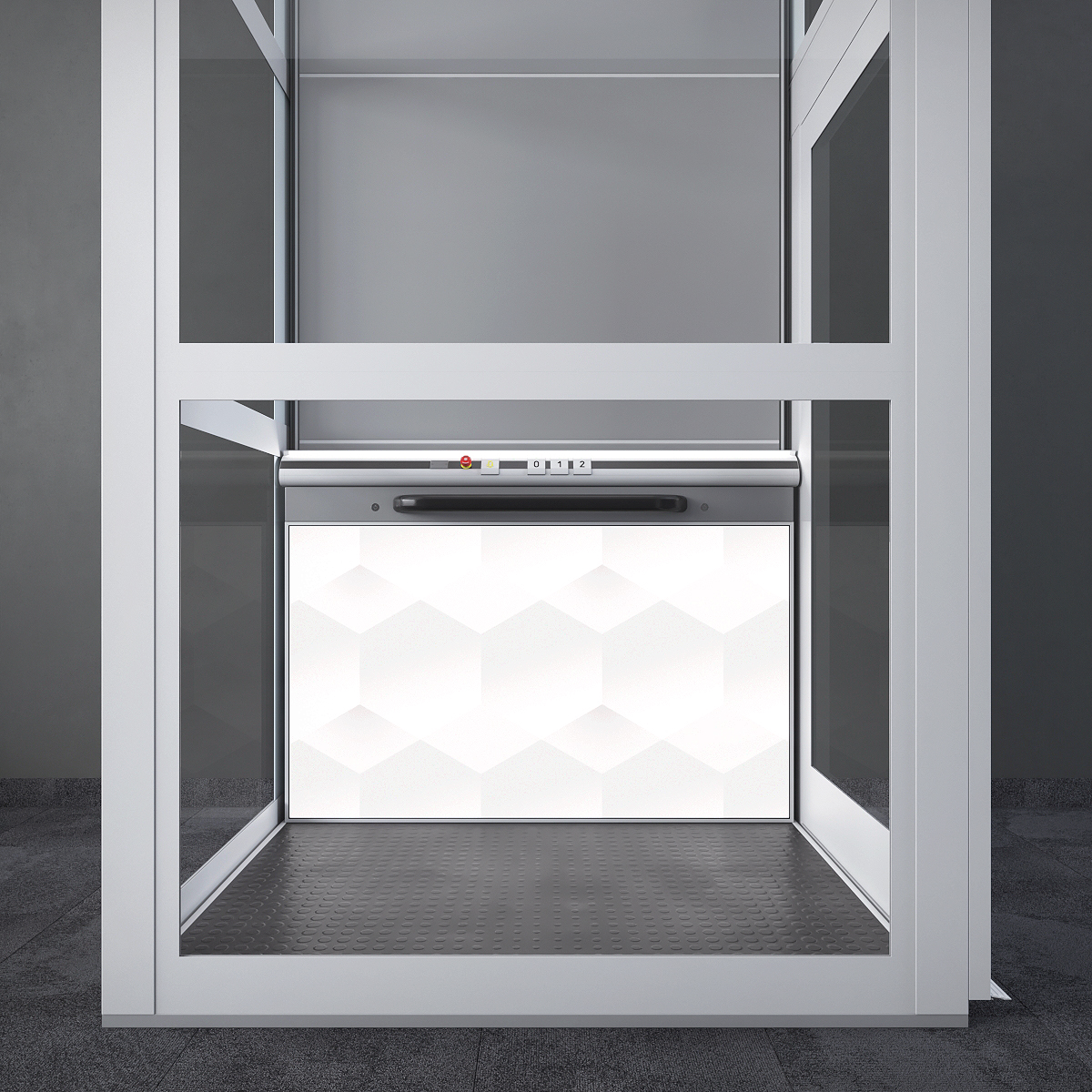

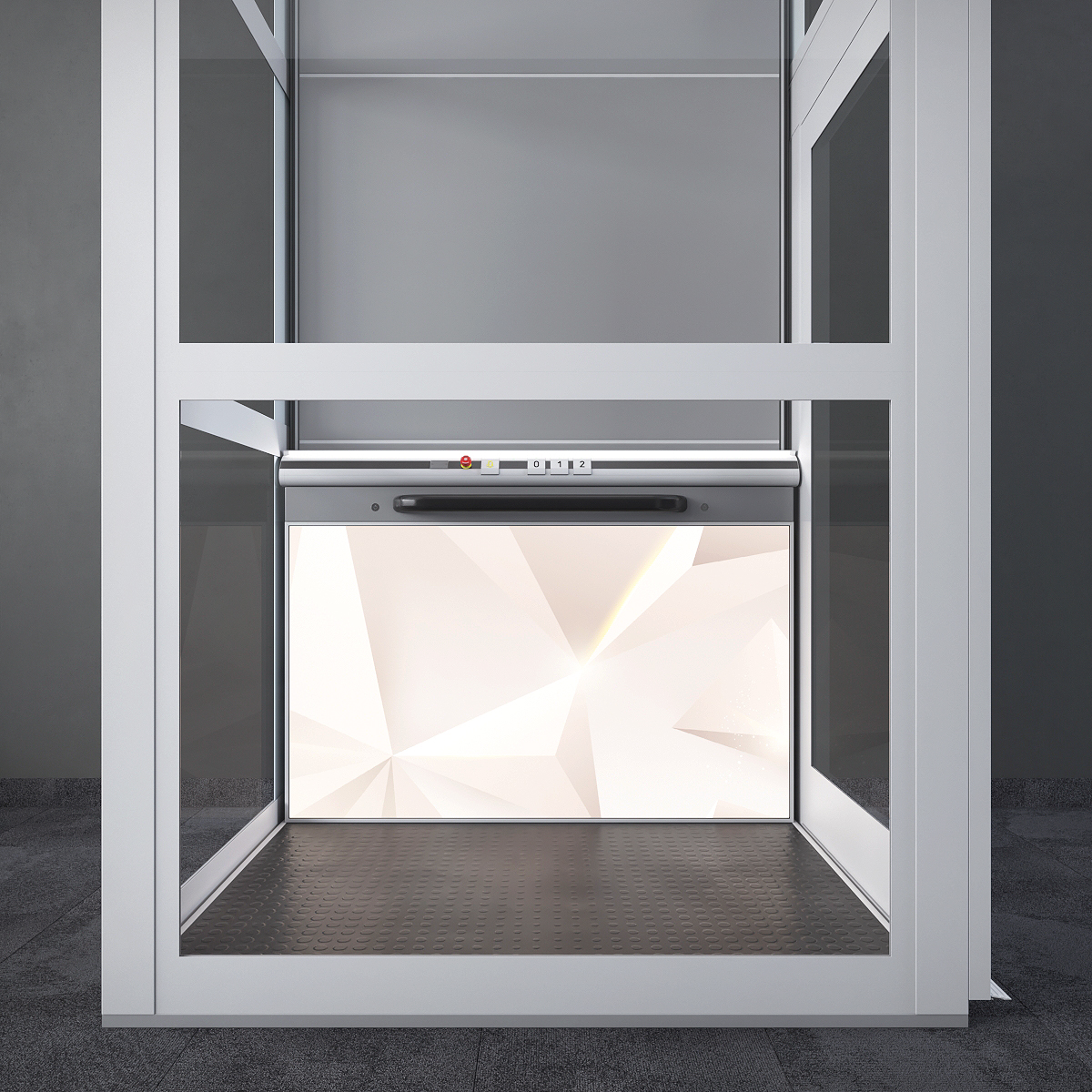

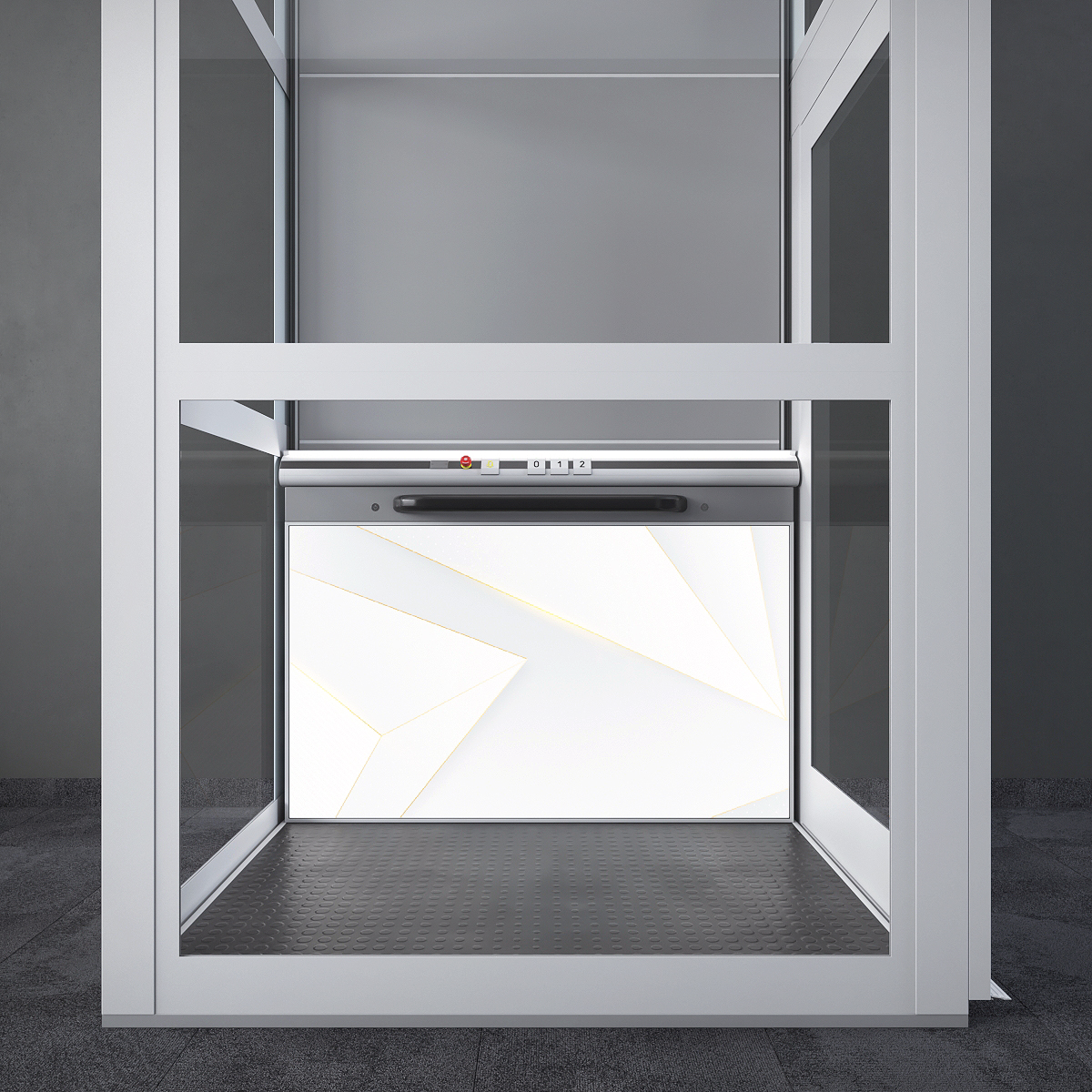

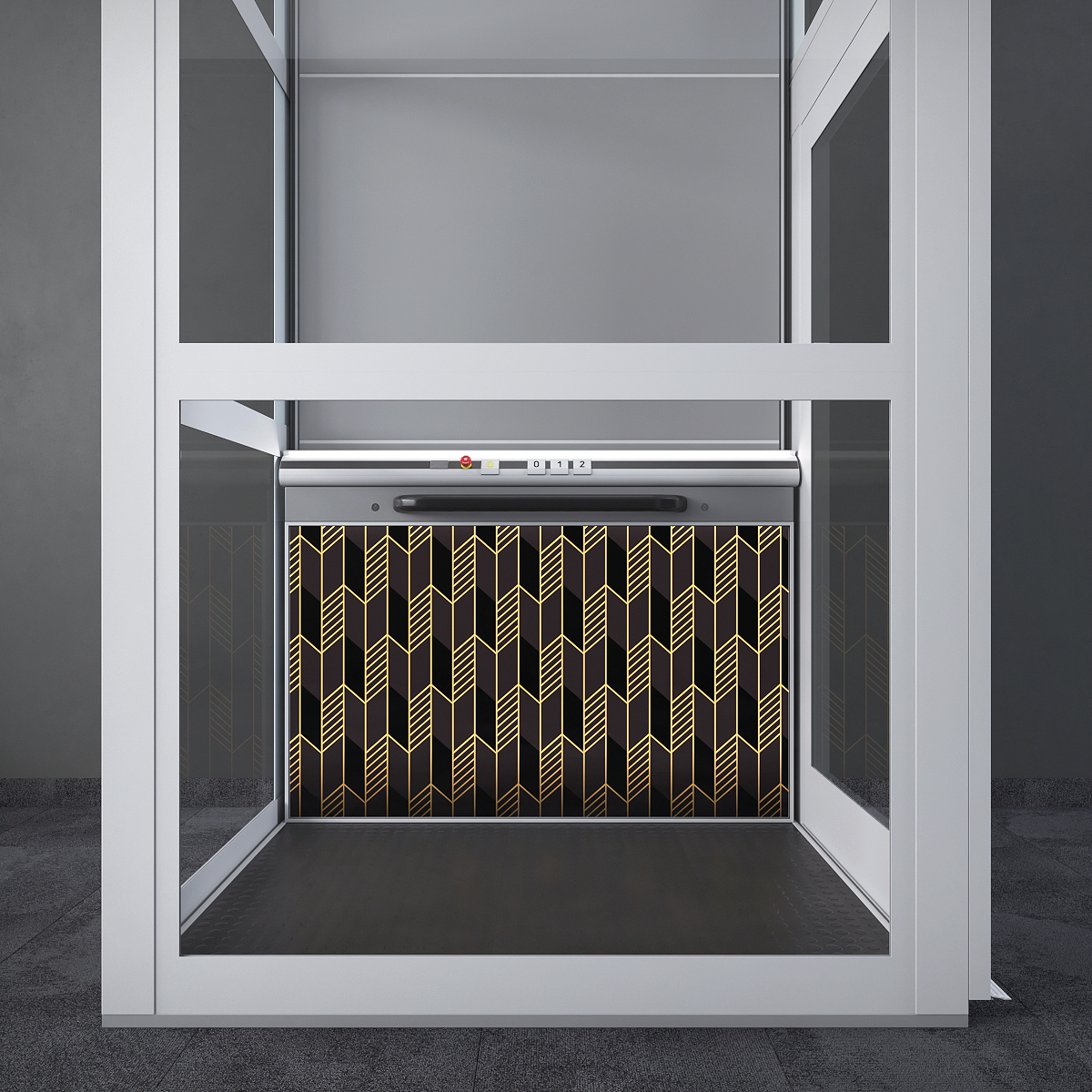

Panel Collection

/

Technical specifications

Drive system

Screw-driven

Nominal load

450 kg / 5 persons

Lifting speed

0.15 m/sec (9 m/min)

Lifting height

Up to 13 meters

Number of stops (floors)

Up to 6

Platform dimensions (length x width, mm)

1100 x 1400

1070 x 1485

1150 x 1485

*Other dimensions available

Dimensions of the shaft (length x width, mm)

1500 x 1460

1460 x 1540

1540 x 1540

*custom measurements available

Door dimensions (width x height, mm)

900 x 2000 (when 1100 x 1400 platform)

940 x 2000* custom measurements available

Gates (width x height, mm)

900 x 1300 (when 1100 x 1400 platform)

940 x 1300

Door configuration

Opens from the right or left, up to 3 doors per stop

Shaft walls

Steel metal or tempered glass panels

Standard colors

RAL 9006 (light grey aluminum)
* lift can be painted in any RAL color

Smooth acceleration/deceleration

Standard equipment

Power supply

220-230 V, 1 phase, 25A
380-400 V 3 phases, 16A, 50 or 60 Hz

Motor

2.2 kW

Noise level

Less than 70 dB

Control system

Micro controller

Technical safety equipment

Protective edge around the platform,

emergency stop buttons on the platform and in the shaft,

emergency stop switches,

electronic speed control,

overload detectors,

door opening and locking control,

screw shock absorber sensors,

electronic engine operation control

European standard compliance

EN 81-41:2010,

EN 81-20:2020,

EN 81-58:2018
