MB400 Cabin elevator

  • Low Installation Costs;
  • Simple Replacement of Old Elevators;
  • One-Touch Control.

The MB400 cabin elevator offers a safe, reliable, and highly cost-effective lifting solution tailored for modern architectural and industrial applications.

In Development

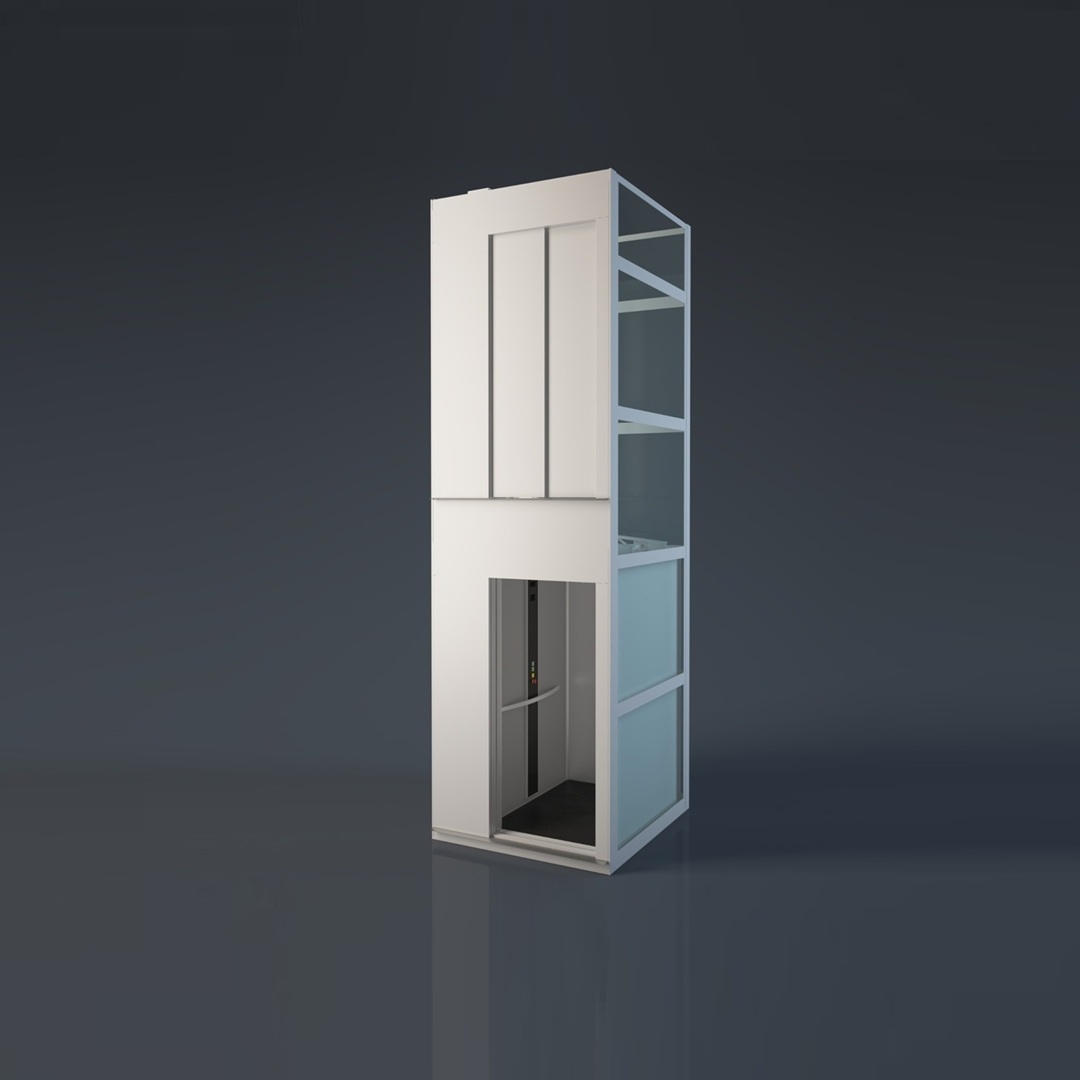

MB400

Cabin Elevator with Automatic One-Touch Control

The MB400 cabin elevator is an engineered solution for modern residential, commercial, and public infrastructure. Designed to combine space-saving architecture with intuitive operation, this compact cabin elevator delivers premium user comfort without the high installation and structural costs of traditional lifts.

Effortless Retrofit & Installation

Whether you are designing a new multi-story project or modernizing an existing facility, the MB400 offers unmatched installation flexibility. Its low pit requirement and minimal shaft footprints make it an ideal retrofit passenger lift for older buildings, private homes, and space-constrained commercial sites. By integrating directly into existing layouts, it drastically reduces site preparation work and overall project budgets.

One-Touch Control & Safety

Unlike conventional platform lifts that require continuous button pressure during travel, the MB400 features an automatic single-touch control system. Users enjoy the smooth, effortless ride of a full-scale commercial elevator. Built in full compliance with European safety regulations (EN 81-41 and EN 81-20), the MB400 includes integrated safety edges, emergency stopping protocols, overload sensors, and a whisper-quiet screw-driven mechanism.

Low-Maintenance Performance

Equipped with an energy-efficient drive system, the MB400 minimizes operational costs and carbon footprint. Its durable construction ensures long-term wear resistance and low technical maintenance demands, providing building owners with a dependable, cost-effective reliable cabin elevator system for your building.

Versatile home solutions

MB400 cabin elevator for home lifts

Home lifts

Explore our full range of custom home lifts, premium cabin finishes, and compact configurations tailored seamlessly to modern residences and interior design projects.

Explore Home Lifts

MB400 elevator advantages

Low Installation Costs

Due to its advanced engineering, this device requires less space and preparation than traditional elevators, significantly reducing the overall project costs.

Space-Saving Design

The lift is designed to be installed even in extremely narrow spaces, making it an indispensable solution for buildings where floor area is limited.

Simple Replacement of Old Elevators

The MB400 is ideal for renovation projects, as it can be installed into existing shafts with only minimal structural adjustments.

Fast and Smooth Installation

Our efficient installation process ensures that your home life or business operations are minimally disrupted, with the lift ready for use in a very short time.

One-Touch Control

Unlike most platform lifts, the MB400 operates like a standard elevator—there is no need to hold the button during travel, providing the highest level of user comfort.

High Safety Standards

A wide range of integrated safety features and precision manufacturing guarantee a smooth and secure journey for every user.

Technical specifications

Drive system

Screw-driven

Nominal load

450 kg / 5 persons

Lifting speed

0.15 m/sec (9 m/min)

Lifting height

Up to 13 meters

Number of stops (floors)

Up to 6

Platform dimensions (length x width, mm)

1100 x 1400

* Other dimensions available

Shaft dimensions (length x width, mm)

1610 x 1700 (1 door)

1610 x 1850 (2 doors)

* Custom measurements available

Space requirements without prefab shaft (length x width, mm)

1560 x 1650 (1 door)

1560 x 1800 (2 doors)

* Custom measurements available

Pit (depth, mm)

100

Door dimensions (width x height, mm)

900 x 2000 (when 1100 x 1400 platform)

* custom measurements available

Door configuration

up to 2 doors per stop

Shaft walls

Steel panels or tempered glass panels

Steel panels or tempered glass panels

RAL 9006 (light grey aluminium)
* lift can be painted in any RAL colour

Soft start/stop

Standard equipment

Power supply

380-400 V 3 phases, 16A, 50 or 60 Hz

Motor

3.0 kW

Noise level

Less than 70 dB

Control system

Micro controller

Technical safety equipment

Protective edge around the platform, emergency stop buttons on the platform and in the shaft, emergency stop switches, electronic speed control, overload detectors, door opening and locking control, screw impact sensors, electronic motor performance control.

European standard compliance

EN 81-41:2010,

EN 81-20:2020,

EN 81-58:2018
