GRB60 Stair lift

  • Advanced Safety Systems;
  • Economical Accessibility;
  • Compact and Space-Saving.

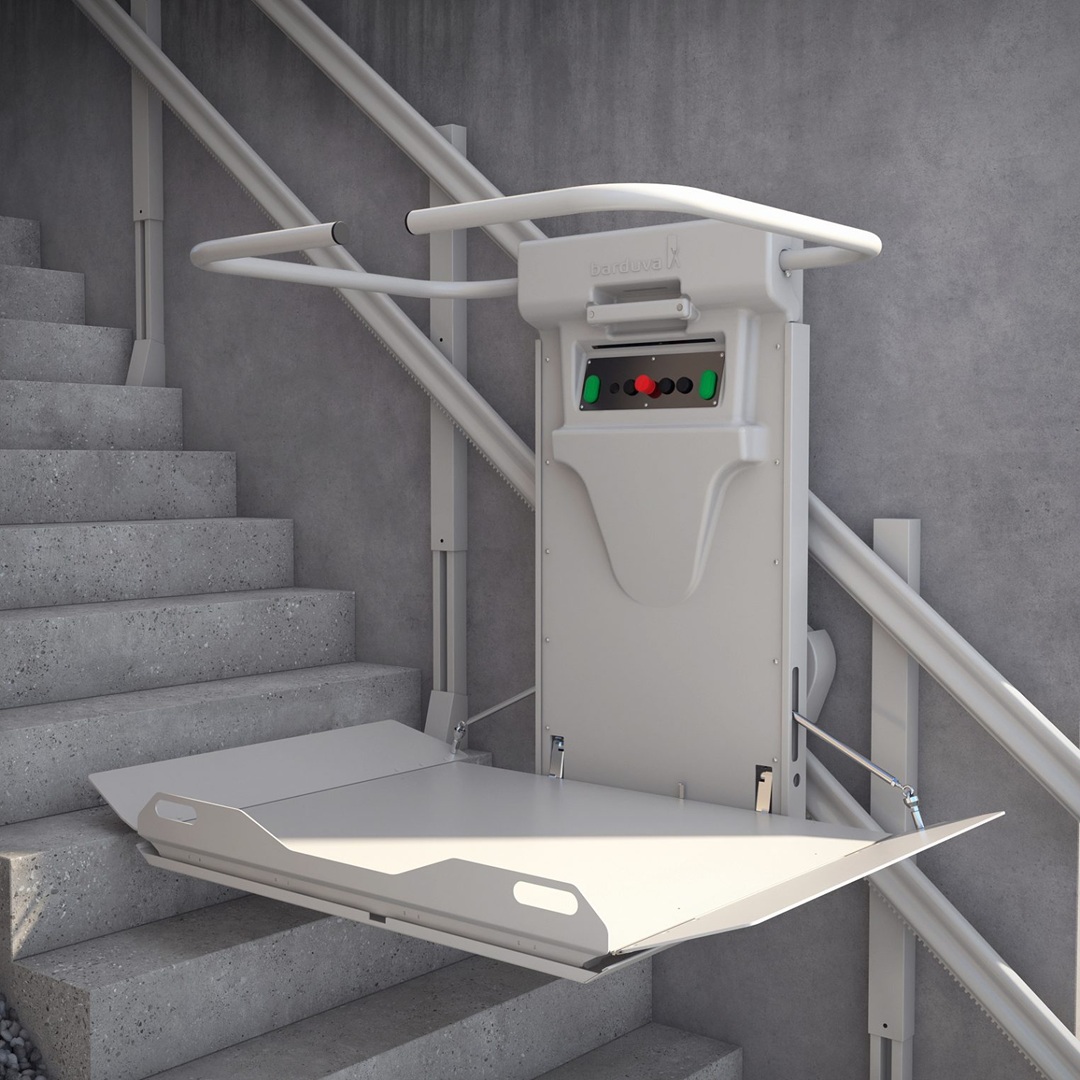

The GRB60 stair lift is an inclined platform lift designed to provide safe and convenient access on straight staircases. It allows people with limited mobility, including wheelchair users, to travel safely and comfortably between floors without major structural modifications.

GRB60

Safe Accessibility for Straight Staircases

The GRB60 stair lift provides safe and comfortable accessibility on straight staircases. This inclined platform lift allows people with limited mobility, including wheelchair users, to travel between floors safely while remaining in their own wheelchairs. The rail system is mounted directly to the existing stairs, reducing the need for major structural modifications.

The GRB60 is suitable for private homes, commercial buildings, offices, educational facilities, and other public spaces. Its compact design makes it a practical alternative where a conventional elevator is not possible or economically justified. Installation requires minimal intervention, helping preserve the existing building structure and appearance.

Versatile Accessibility Solution

Designed for straight staircases, the GRB60 combines a compact footprint with a sleek profile. When not in use, the platform can be folded to keep the staircase clear for other users. Smooth movement, a stable platform, and integrated safety features provide a comfortable and secure journey between levels.

The solution is suitable for different types of wheelchairs and can be adapted to a range of existing environments. By combining straightforward installation, space-efficient design, and independent operation, the GRB60 offers a practical way to improve accessibility without extensive construction work.

Its design also helps maintain the everyday functionality of the staircase. Users can access upper and lower levels more independently, while other pedestrians can continue using the stairs when the platform is parked. This makes the system particularly suitable for buildings where space is limited and accessibility needs to be improved without major alterations.

GRB60 for wheelchair users

Cost-effective solution

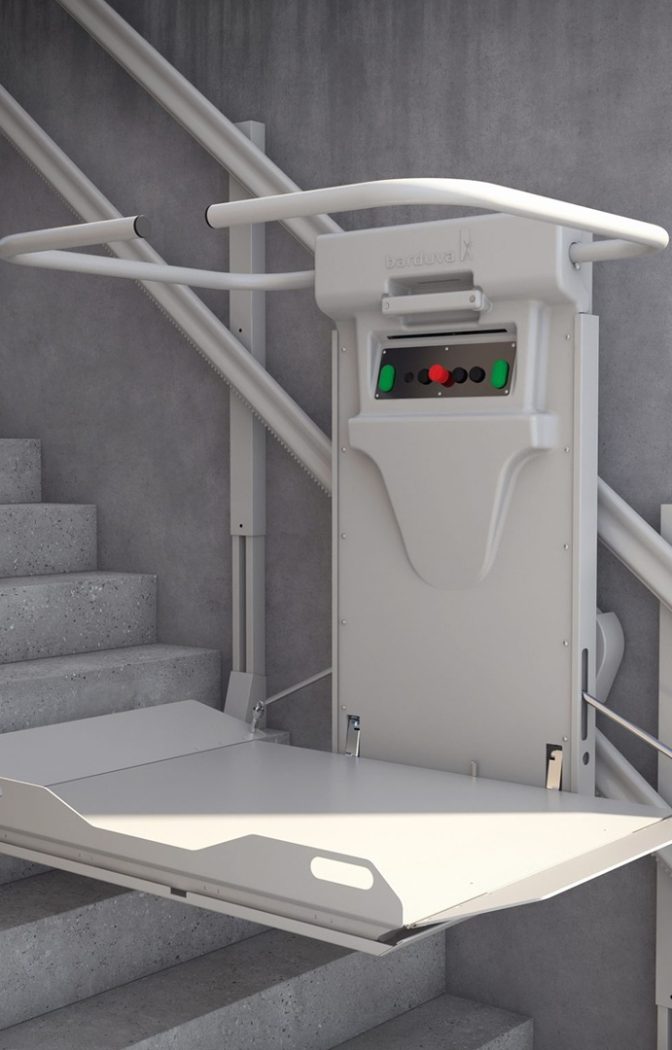

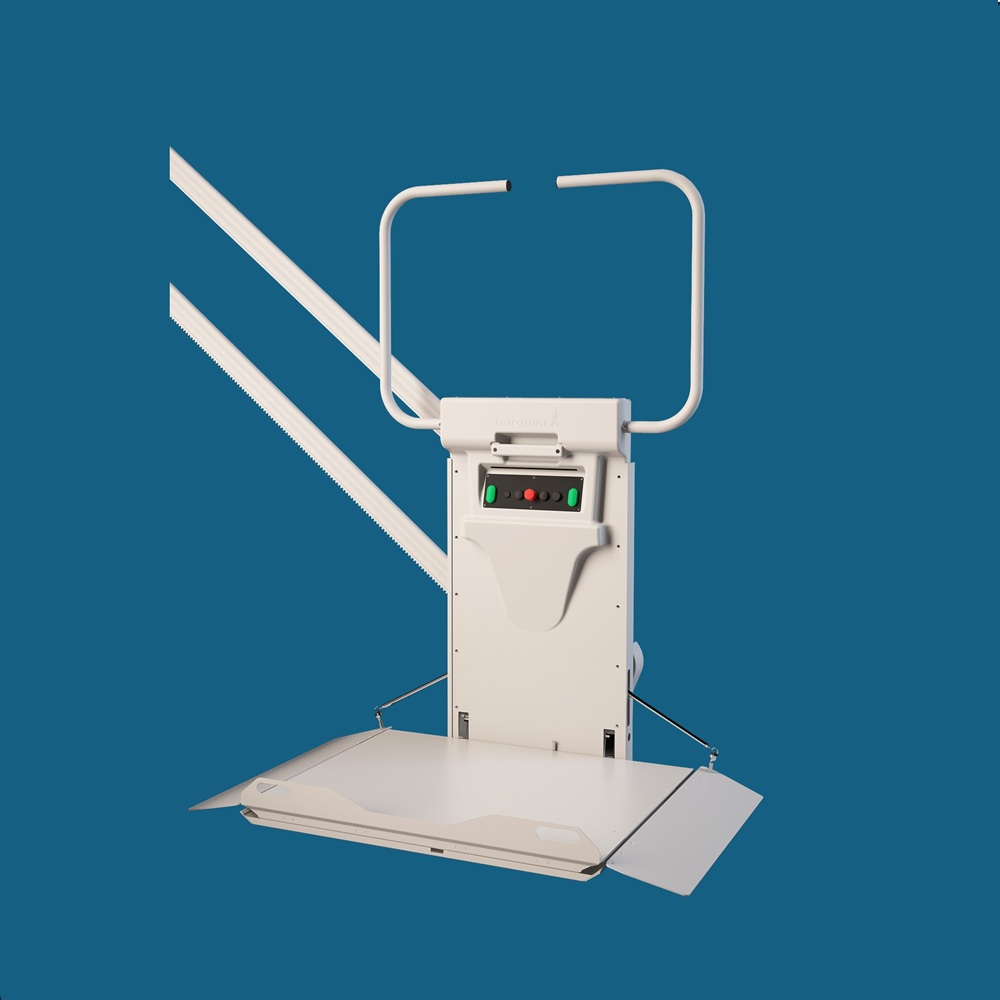

wheelchair lift GRB60 by Barduva

The GRB60 is a safe, convenient and cost-effective solution for wheelchair users. It carries a person in a wheelchair smoothly up and down straight staircases using a compact rail system mounted directly to the stairs.

Wheelchair lift solutions

Stair Lift GRB60 Advantages

Advanced Safety Systems

The device is equipped with all essential safety features: automatic brakes, safety barriers, and sensitive sensors that instantly stop movement if an obstacle is detected on the stairs.

Maximum Comfort and Stability

The lift is designed to ensure steady movement without sudden acceleration. The platform is spacious and adapted for various types of wheelchairs, ensuring the user’s stability throughout the journey.

Economical Accessibility

This is one of the most affordable solutions on the market, allowing a building to be adapted for people with disabilities without expensive construction work, shaft excavation, or elevator installation.

Compact and Space-Saving

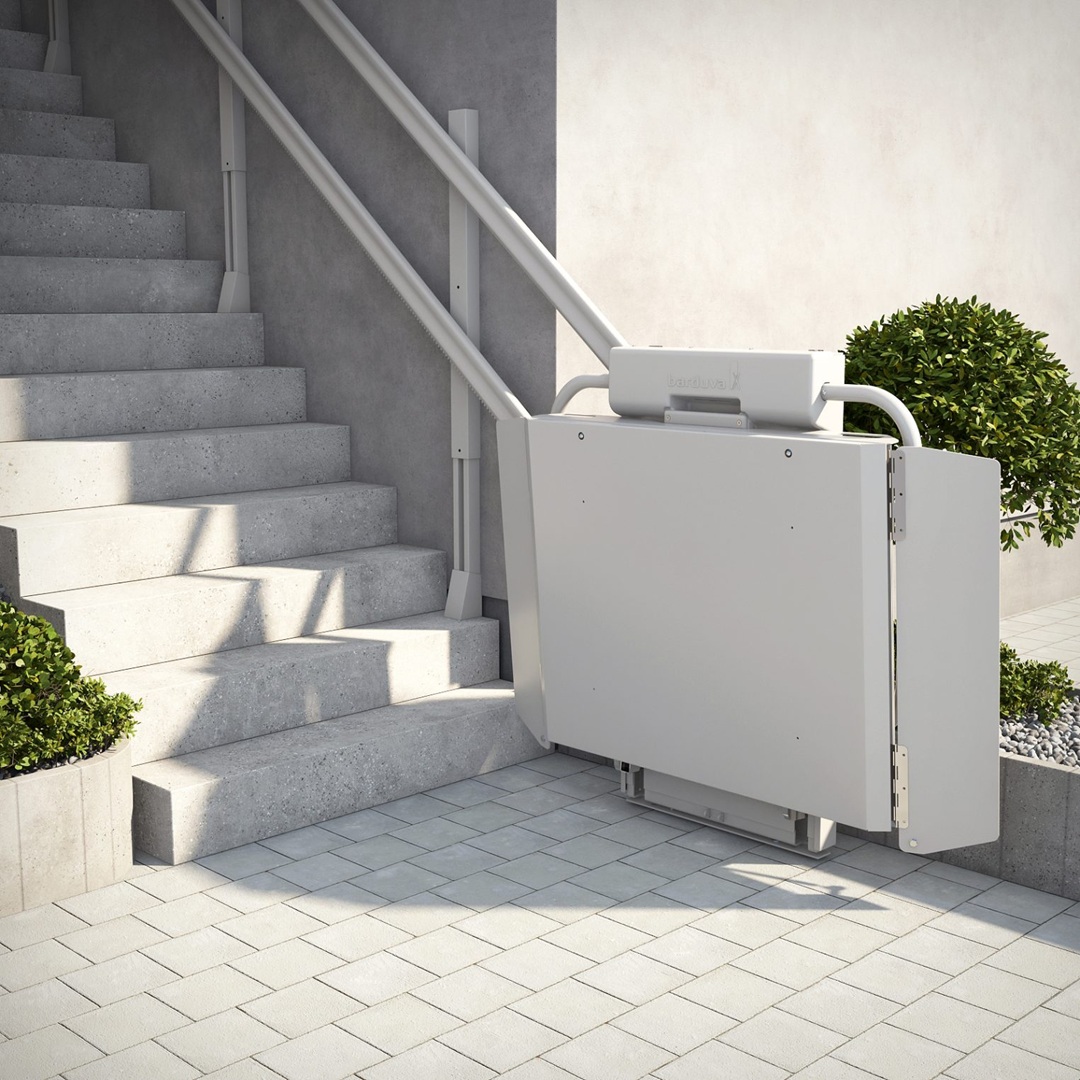

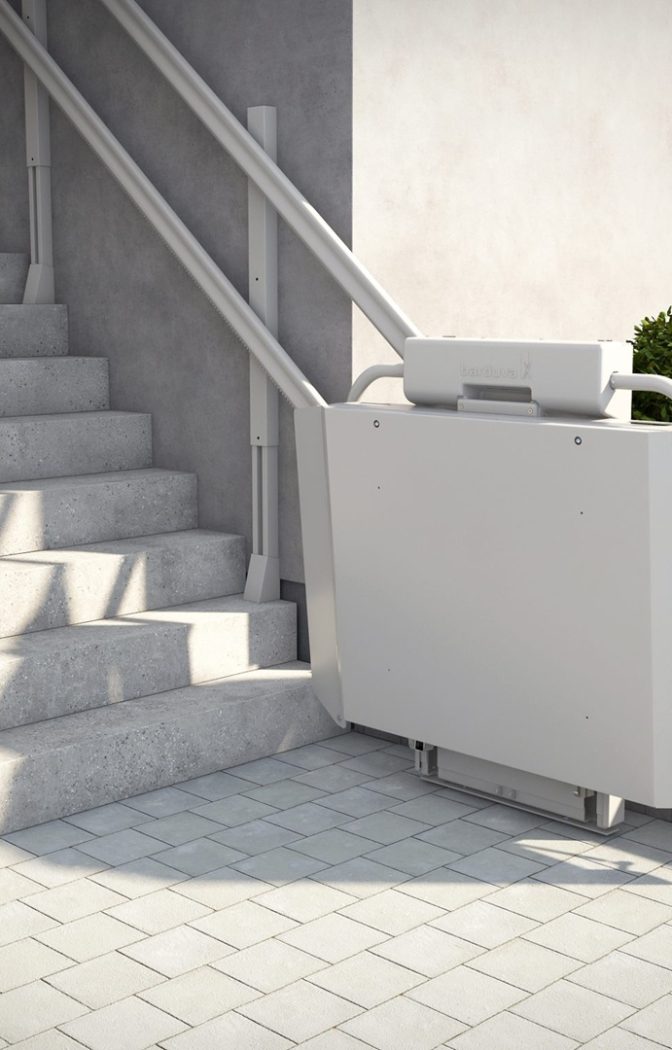

When the lift is not in use, the platform can be easily folded. This leaves the stairs free for other pedestrians, making it suitable even for narrower staircases.

Simple and Universal Installation

Due to its design, the GRB60 can be installed in almost any building on existing straight stairs. The installation process is fast and requires minimal intervention in the building’s finish.

Intuitive Control

Clear and simple control buttons allow the user to operate the lift independently without assistance, providing more freedom and independence.

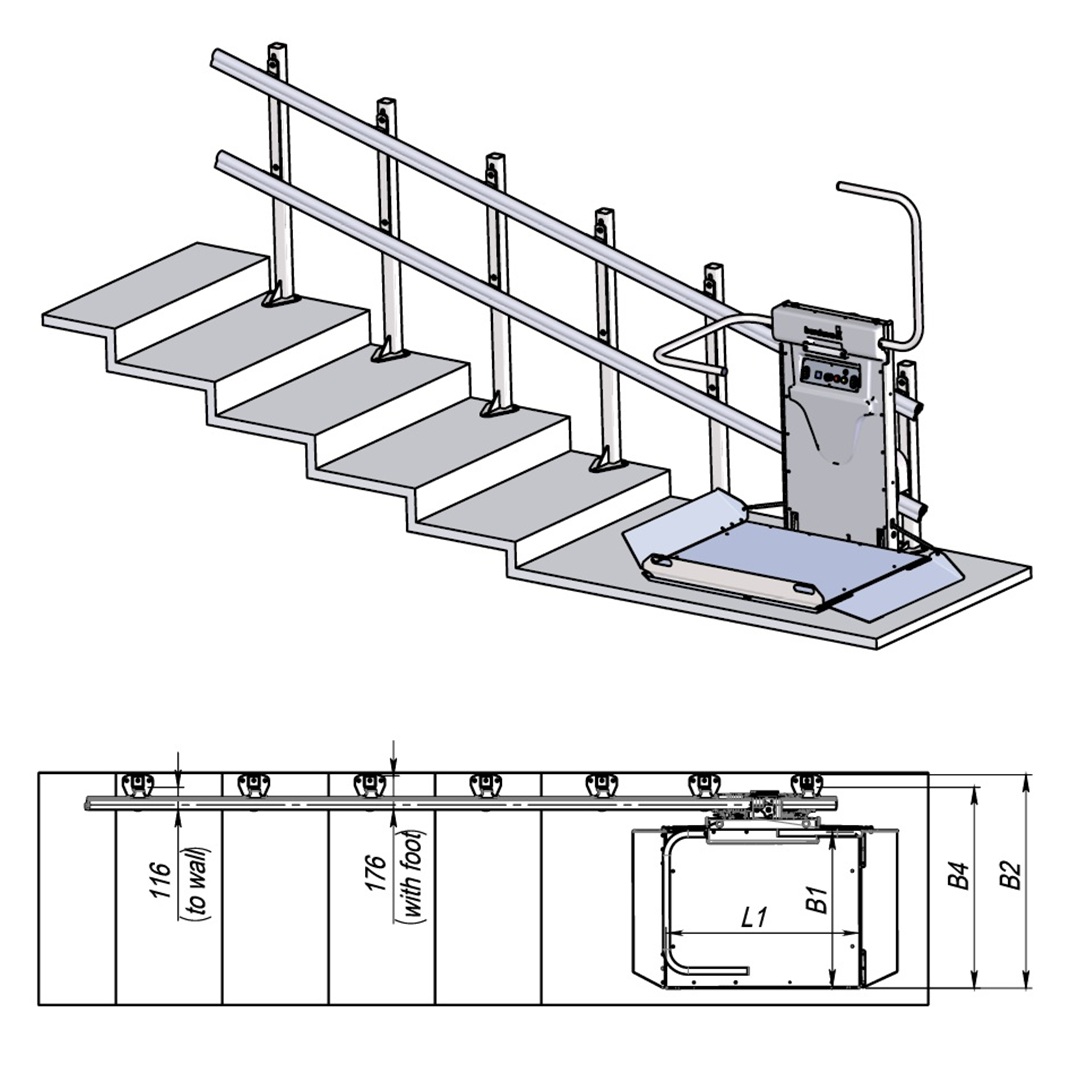

Technical specifications

Load

250 kg

Travel

3000 mm Up to 30 m (depending on rail inclination angle)

Speed

0,1 m/s (reduced in the curves)

Driving motor

0,5 kW

Platform motor

24 V

Barrier-arm motor

24 V

Power supply

by batteries

Voltage

24 V DC; for recharger 1 x 230 V

Lift

24V DC

Driving mechanism

Rack and Pinion (safety – overspeed governor)

Construction

Steel-and aluminium rails on

Platform standard size (length x width)

1000 x 800 mm

Other sizes (length x width)

750×700 mm;

850×700 mm;

1250×800 mm.
